How to Make Transparent Screen With Android Overlay Function

In any industry, trends always emerge from the present context. While some stick for years, while some disappear within a month or two. But, with mobile app design, trends are usually accompanied by the release of every new OS. Similarly, with the Android Overlay function, Android app designers are constantly designing user-friendly and creative app designs.

Therefore, today, in this step by step Android overlay app tutorial, we will be covering the implementation process of the Android overlay function by creating a transparent demo screen to build an Android app more user-friendly. So, let’s get started with this Android overlay tutorial.

Table of Contents

Steps to Create Transparent Demo Screen in App
FAQs
Conclusion

Steps to Create Transparent Demo Screen in App

First, open Android Studio, and create a new project under the file menu.

Now, select your target device and click on next.

In the next tab, select Empty Activity.

Lastly, customize the activity.

Start Code Integration

Activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/activity_main"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="@android:color/white"
    android:orientation="vertical"
    tools:context="com.showhintdemo.MainActivity">
    <FrameLayout
        android:layout_width="match_parent"
        android:layout_height="match_parent">
        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:orientation="vertical">
            <!-- Toolbar instead of ActionBar so the drawer_menu can slide on top -->
            <android.support.v7.widget.Toolbar
                android:id="@+id/toolbar"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:background="@android:color/black"
                android:theme="@style/ThemeOverlay.AppCompat.Dark.ActionBar"
                app:contentInsetStart="0dp">
                <LinearLayout
                    android:layout_width="match_parent"
                    android:layout_height="match_parent"
                    android:minHeight="?attr/actionBarSize">
                    <ImageView
                        android:id="@+id/imgSettings"
                        android:layout_width="wrap_content"
                        android:layout_height="match_parent"
                        android:padding="8dp"
                        android:src="@drawable/settings" />
                    <TextView
                        android:layout_width="wrap_content"
                        android:layout_height="match_parent"
                        android:layout_weight="1"
                        android:gravity="center"
                        android:singleLine="true"
                        android:text="HOME"
                        android:textAppearance="?android:attr/textAppearanceMedium"
                        android:textColor="@android:color/white"
                        android:textStyle="bold" />
                    <ImageView
                        android:id="@+id/imgMenu"
                        android:layout_width="wrap_content"
                        android:layout_height="match_parent"
                        android:layout_gravity="right"
                        android:padding="8dp"
                        android:src="@drawable/menu" />
                </LinearLayout>
            </android.support.v7.widget.Toolbar>
            <TextView
                android:id="@+id/textMessage"
                android:layout_width="match_parent"
                android:layout_height="match_parent"
                android:gravity="center"
                android:text="Welcome to overlay demo"
                android:textColor="@android:color/black"
                android:textSize="22sp"
                android:visibility="gone" />
        </LinearLayout>
        <RelativeLayout
            android:id="@+id/rlOverlay"
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:background="@drawable/img_transparent_bg">
            <LinearLayout
                android:id="@+id/llSettings"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content">
                <ImageView
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content"
                    android:paddingLeft="@dimen/activity_horizontal_margin"
                    android:paddingTop="@dimen/activity_horizontal_margin"
                    android:src="@drawable/img_settings_indicator" />
                <TextView
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content"
                    android:layout_gravity="bottom"
                    android:text="Go to Settings"
                    android:textColor="@android:color/white"
                    android:textSize="22sp" />
            </LinearLayout>
            <LinearLayout
                android:id="@+id/llMenu"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_alignParentRight="true"
                android:visibility="gone">
                <TextView
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content"
                    android:layout_gravity="bottom"
                    android:text="Open menu from here"
                    android:textColor="@android:color/white"
                    android:textSize="22sp" />
                <ImageView
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content"
                    android:paddingRight="@dimen/activity_horizontal_margin"
                    android:paddingTop="@dimen/activity_horizontal_margin"
                    android:src="@drawable/img_menu_indicator" />
            </LinearLayout>
            <TextView
                android:id="@+id/textHelp"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_alignParentBottom="true"
                android:layout_alignParentRight="true"
                android:layout_marginBottom="16dp"
                android:layout_marginRight="16dp"
                android:text="Next"
                android:textColor="@android:color/white"
                android:textSize="22sp" />
</RelativeLayout>
</FrameLayout>
</LinearLayout>

Want To Create An Android Application?

Looking to Create An Android app? Get in touch with our experienced Android app developers for a free consultation.

MainActivity.java

package com.showhintdemo;

import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.view.View;
import android.widget.ImageView;
import android.widget.LinearLayout;
import android.widget.RelativeLayout;
import android.widget.TextView;
import android.widget.Toast;

public class MainActivity extends AppCompatActivity implements View.OnClickListener {

    private TextView textMessage;
    private TextView textHelp;
    private ImageView imgSettings;
    private ImageView imgMenu;
    private RelativeLayout rlOverlay;
    private LinearLayout llSettings;
    private LinearLayout llMenu;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        initControls();
    }

    private void initControls() {
        textMessage = (TextView) findViewById(R.id.textMessage);
        textHelp = (TextView) findViewById(R.id.textHelp);
        textHelp.setOnClickListener(this);
        imgSettings = (ImageView) findViewById(R.id.imgSettings);
        imgSettings.setOnClickListener(this);
        imgMenu = (ImageView) findViewById(R.id.imgMenu);
        imgMenu.setOnClickListener(this);
        rlOverlay = (RelativeLayout) findViewById(R.id.rlOverlay);
        llSettings = (LinearLayout) findViewById(R.id.llSettings);
        llMenu = (LinearLayout) findViewById(R.id.llMenu);
    }

    @Override
    public void onClick(View view) {
        switch (view.getId()) {
            case R.id.imgSettings:
                Toast.makeText(this, "Settings icon clicked", Toast.LENGTH_LONG).show();
                break;
            case R.id.imgMenu:
                Toast.makeText(this, "Menu icon clicked", Toast.LENGTH_LONG).show();
                break;
            case R.id.textHelp:
                if (textHelp.getText().toString().equals("Next")) {
                    llSettings.setVisibility(View.GONE);
                    llMenu.setVisibility(View.VISIBLE);
                    textHelp.setText("Got It");
                } else {
                    rlOverlay.setVisibility(View.GONE);
                    textMessage.setVisibility(View.VISIBLE);
                }
                break;
            default:
                break;
        }
    }
}

And done!

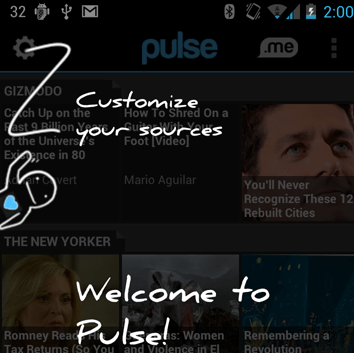

Now when you’ll launch the app for the first time, you’ll see the output like this.
